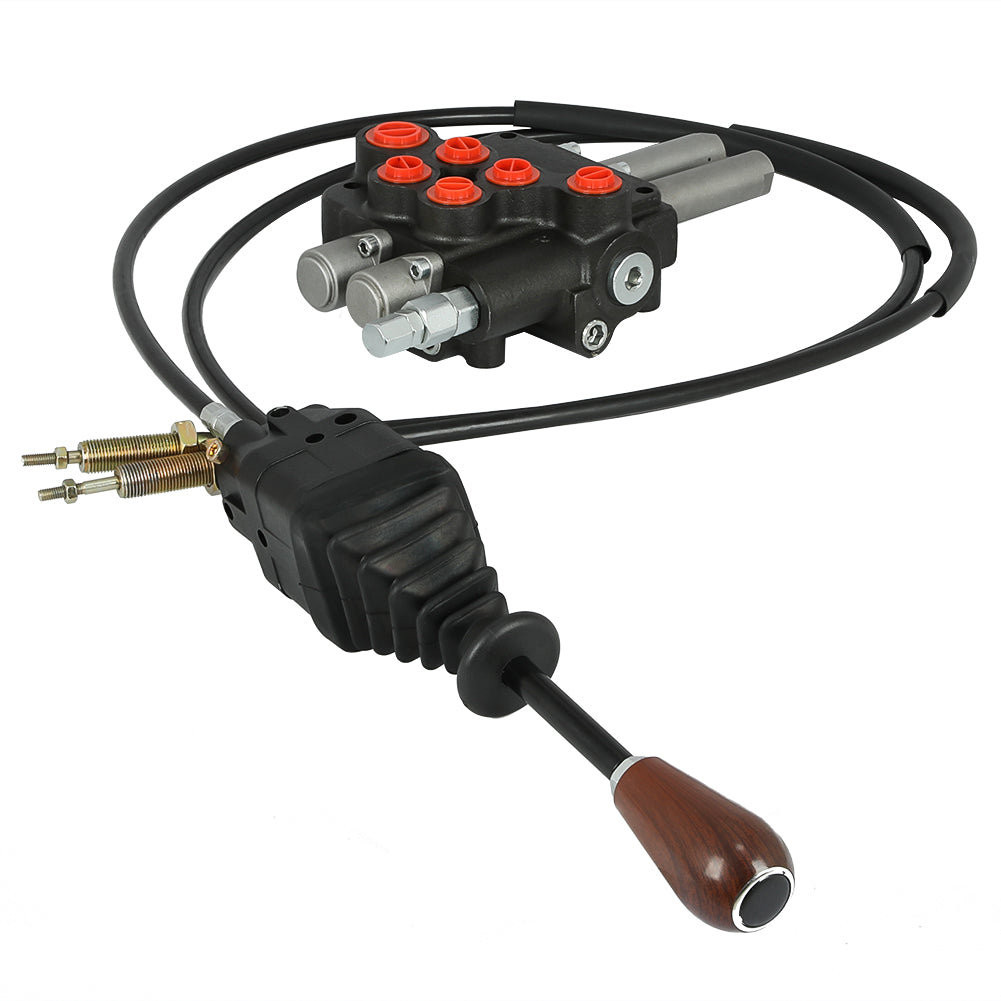

Hydraulic Control Valve w/2 Spool Valve 801pm/ 21gpm & 2 Cables Remote Joystick

Description:

COMPLETE KIT | P80 2-Spool Hydraulic Valve w/ Jotstick & Cables | 21 GPM | Spring Return to Neutral

Ready to ship from us warehouse – fast delivery!

Professional remote hydraulic control valve kit – Precision-engineered for smooth, reliable operation in demanding conditions. This complete P80 2-spool valve kit delivers 21 GPM (80 LPM) high flow performance and features a convenient spring-return-to-neutral design for safety and control.

Specification:

Model: P80, 2 Spool

Nominal Flow: 21 GPM (80 L/min)

Max. Working Pressure: 25 MPa (3625PSI)

Relief Valve Pressure: 17 MPa, Adjustable

Applicable Temperature: −4℉~ 176℉( -20～80℃)

Max Operating Pressure: P = 3600 psi (250 bar); T = 150 psi (10 bar); A , B = 4300 psi (300 bar)

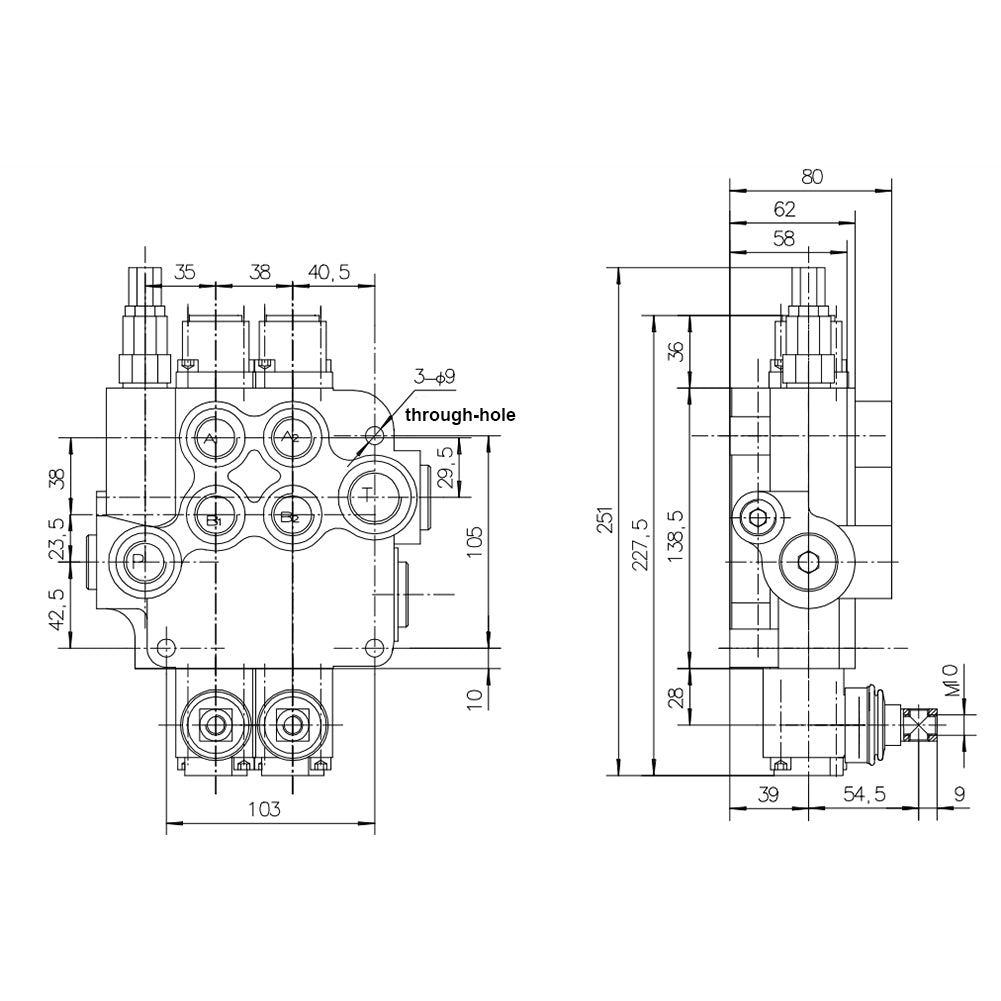

P, A, B ports: G 1/2"

T, N port: G 3/4"

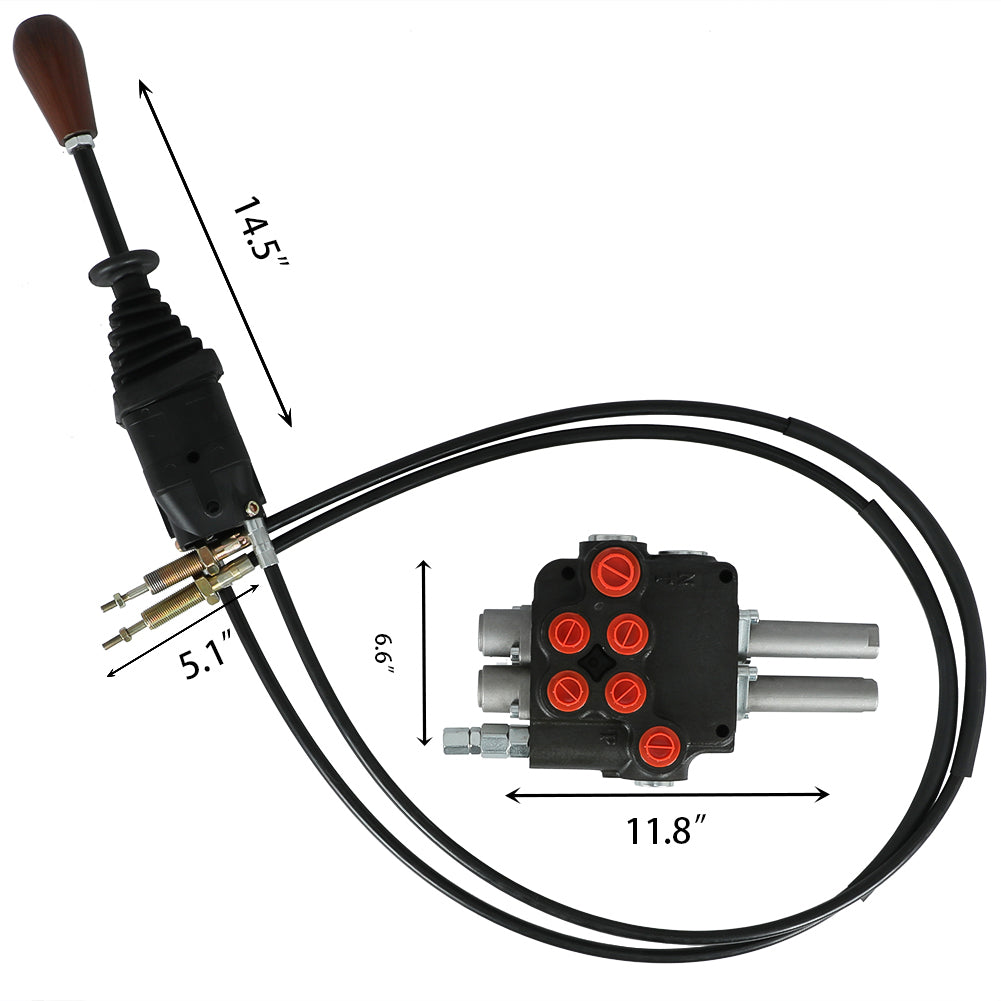

Cable Length: 59 in / 1.5m

Package size: 20×12×10 in / 50×30×24 cm

Gross weight: 23 lbs / 10.3 kg

Features:

【Spring-Return Neutral (SAFETY FIRST)】All spools are standard double-acting with spring return – automatically recenters when released.

【Open Center System】Designed for pump-to-tank flow, compatible with most common hydraulic circuits (closed center conversion plug optional).

【High Flow, High Pressure】Rated for 21 GPM (80 LPM), built to handle tough jobs.

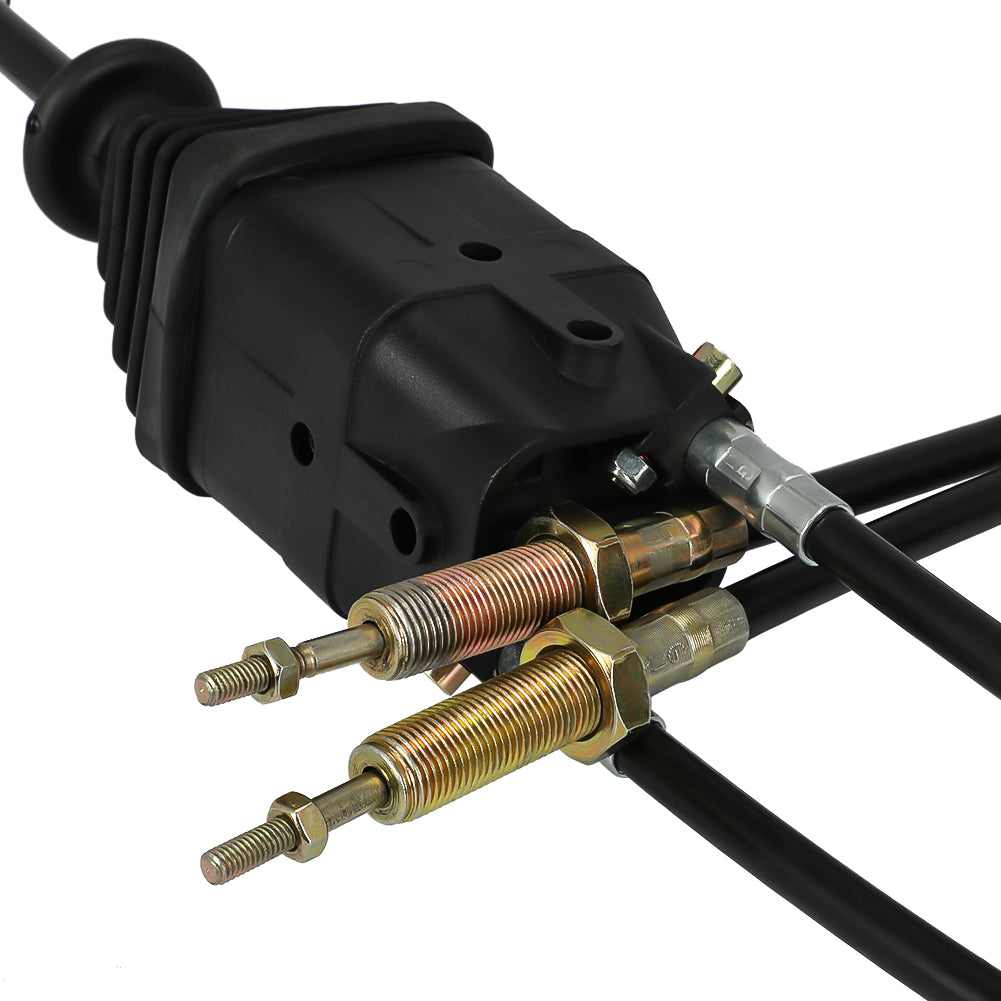

【Ergonomic Remote Control】Includes 59 in (1.5m) flexible shafts + dual-handle joystick for comfortable, precise operation from a distance.

【Built-in Protection】Integrated safety valve & overload valve for system durability.

【Easy installation & ready to use】This is a complete plug-and-play kit – everything you need is in the box. Save time and avoid sourcing parts separately.

【Universal Fit】Perfect for skid steers, tractors, dump trucks, log splitters, lifts, agricultural & construction equipment.

Friendly Reminder:

Closed-center and power beyond conversion plugs are available upon request. Please contact us for a quotation.

Packing List:

1× 2 Spool Valve + Cables + Joystick
